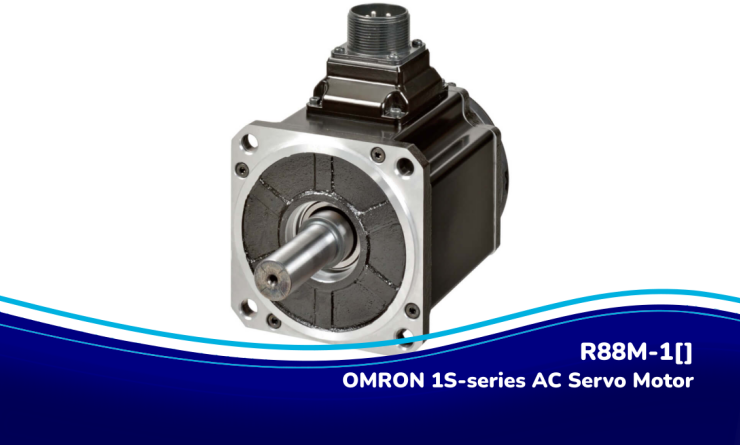

![R88M 1[]](/assets/products/R88M-1-v2__FocusFillWyIwLjAwIiwiMC4wMCIsNzQwLDQ0NV0.png)
230 VAC from 50 W to 1.5 kW (rated torque from 0.159 to 8.59 Nm)
400 VAC from 400 W to 15 kW (rated torque from 1.91 to 95.5 Nm)
Availability
Status: Contact for Details (UK + World-wide delivery available)
Pricing: Request a quote
Description
The Omron 1S servo system streamlines the machine manufacturing cycle from design to maintenance while enhancing productivity through high-performance features.
Key capabilities include a battery-free high-resolution encoder, an innovative control loop (TDF), and a built-in safety network.
Available configurations:
| R88M-1L1K030C-BS2 | 400 V three phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L1K030C-S2 | 400 V three phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L1K030H-BS2 | 230 V single phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1L1K030H-S2 | 230 V single phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1L1K030T-BS2 | 230 V single phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L1K030T-S2 | 230 V single phase, 1 kW / 3.18 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L1K530C-BS2 | 400 V three phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L1K530C-S2 | 400 V three phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L1K530H-BS2 | 230 V single phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1L1K530H-S2 | 230 V single phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1L1K530T-BS2 | 230 V single phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L1K530T-S2 | 230 V single phase, 1.5 kW / 4.77 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L2K030C-BS2 | 400 V three phase, 2 kW / 6.37 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L2K030C-S2 | 400 V three phase, 2 kW / 6.37 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L3K030C-BS2 | 400 V three phase, 3 kW / 9.55 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L3K030C-S2 | 400 V three phase, 3 kW / 9.55 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L4K030C-BS2 | 400 V three phase, 4 kW / 12.7 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L4K030C-S2 | 400 V three phase, 4 kW / 12.7 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L5K030C-BS2 | 400 V three phase, 5 kW / 15.9 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L5K030C-S2 | 400 V three phase, 5 kW / 15.9 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1L75030C-BS2 | 400 V three phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1L75030C-S2 | 400 V three phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M05030T-BS2 | 230 V single phase, 50 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M05030T-S2 | 230 V single phase, 50 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M10030H-BS2 | 230 V single phase, 100 W / 2.39 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M10030H-S2 | 230 V single phase, 100 W / 2.39 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1M10030T-BS2 | 230 V single phase, 100 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M10030T-S2 | 230 V single phase, 100 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M11K015C-BS2 | 400 V three phase, 100 W / 2.39 Nm, 1500 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M11K015C-S2 | 400 V three phase, 100 W / 2.39 Nm, 1500 r/min, 23-bit absolute battery-less encoder |
| R88M-1M15K015C-BS2 | 400 V three phase, 15 kW / 95.5 Nm, 1500 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M15K015C-S2 | 400 V three phase, 15 kW / 95.5 Nm, 1500 r/min, 23-bit absolute battery-less encoder |
| R88M-1M1K020C-BS2 | 400 V three phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M1K020C-S2 | 400 V three phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M1K020H-BS2 | 230 V single phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M1K020H-S2 | 230 V single phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit incremental encoder |
| R88M-1M1K020T-BS2 | 230 V single phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M1K020T-S2 | 230 V single phase, 1 kW / 4.77 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M1K520C-BS2 | 400 V three phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M1K520C-S2 | 400 V three phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M1K520H-BS2 | 230 V single phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M1K520H-S2 | 230 V single phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit incremental encoder |
| R88M-1M1K520T-BS2 | 230 V single phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M1K520T-S2 | 230 V single phase, 1.5 kW / 7.16 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M20030H-BS2 | 230 V single phase, 200 W / 0.637 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M20030H-S2 | 230 V single phase, 200 W / 0.637 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1M20030T-BS2 | 230 V single phase, 200 W / 0.637 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M20030T-S2 | 230 V single phase, 200 W / 0.637 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M2K010C-BS2 | 400 V three phase, 2 kW / 19.1 Nm, 1000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M2K010C-S2 | 400 V three phase, 2 kW / 19.1 Nm, 1000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M2K020C-BS2 | 400 V three phase, 2 kW / 9.55 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M2K020C-S2 | 400 V three phase, 2 kW / 9.55 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M3K010C-BS2 | 400 V three phase, 3 kW / 28.65 Nm, 1000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M3K010C-S2 | 400 V three phase, 3 kW / 28.65 Nm, 1000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M3K020C-BS2 | 400 V three phase, 3 kW / 14.32 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M3K020C-S2 | 400 V three phase, 3 kW / 14.32 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M40020C-BS2 | 400 V three phase, 400 W / 1.91 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M40020C-S2 | 400 V three phase, 400 W / 1.91 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M40030H-BS2 | 230 V single phase, 400 W / 1.27 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M40030H-S2 | 230 V single phase, 400 W / 1.27 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1M40030T-BS2 | 230 V single phase, 400 W / 1.27 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M40030T-S2 | 230 V single phase, 400 W / 1.27 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M4K015C-BS2 | 400 V three phase, 400 W / 25.5 Nm, 1500 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M4K015C-S2 | 400 V three phase, 400 W / 25.5 Nm, 1500 r/min, 23-bit absolute battery-less encoder |
| R88M-1M5K515C-BS2 | 400 V three phase, 400 W / 35.0 Nm, 1500 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M5K515C-S2 | 400 V three phase, 400 W / 35.0 Nm, 1500 r/min, 23-bit absolute battery-less encoder |
| R88M-1M60020C-BS2 | 400 V three phase, 600 W / 2.86 Nm, 2000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M60020C-S2 | 400 V three phase, 600 W / 2.86 Nm, 2000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M75030H-BS2 | 230 V single phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit incremental encoder, with brake |
| R88M-1M75030H-S2 | 230 V single phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit incremental encoder |
| R88M-1M75030T-BS2 | 230 V single phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M75030T-S2 | 230 V single phase, 750 W / 2.39 Nm, 3000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M7K515C-BS2 | 400 V three phase, 7.5 kW / 47.8 Nm, 1500 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M7K515C-S2 | 400 V three phase, 7.5 kW / 47.8 Nm, 1500 r/min, 23-bit absolute battery-less encoder |
| R88M-1M90010C-BS2 | 400 V three phase, 900 W / 8.59 Nm, 1000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M90010C-S2 | 400 V three phase, 900 W / 8.59 Nm, 1000 r/min, 23-bit absolute battery-less encoder |
| R88M-1M90010T-BS2 | 230 V single phase, 900 W / 8.59 Nm, 1000 r/min, 23-bit absolute battery-less encoder, with brake |
| R88M-1M90010T-S2 | 230 V single phase,900 W / 8.59 Nm, 1000 r/min, 23-bit absolute battery-less encoder |
