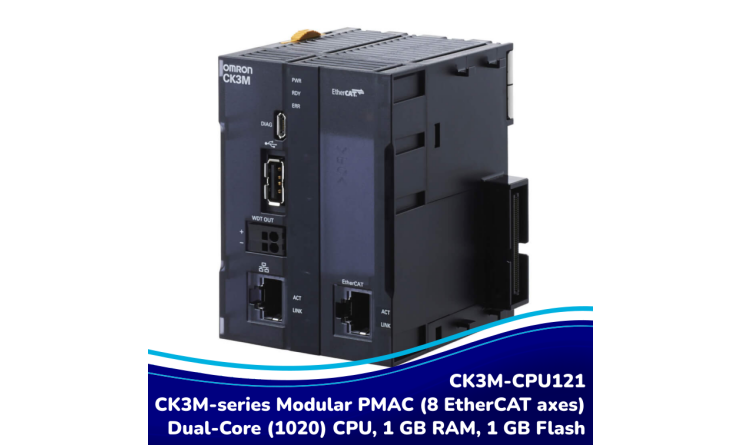

CK3M-CPU121 | OMRON CK3M-series Modular PMAC
OMRON (CK3M) Dual-Core (1020) CPU, 1 GB RAM & 1 GB Flash. (8 EtherCAT servo axes)
GET IN TOUCH ABOUT THIS PRODUCT
CK3M-CPU121
Availability
Status: In Stock (Fast UK + World-wide delivery available)
Pricing: Request a quote
Description
The OMRON CK[]M-Series embeds Delta Tau’s legendary Power PMAC motion engine directly into a compact, modular hardware platform. Built for machine builders who refuse to compromise on precision, the CK[]M combines nanoscale motion control with a flexible, snap-together design.
- CK3M product series can interface with the CK3W-series modules
- The CK3M-CPU121 controls up to 8 EtherCAT servo drives
- Control up to eight analog servo drives via two CK3W-AX Style Axial Interface Units
- G-Code/ANSI C/original programming language
- EtherCAT slaves including vision and I/O can be connected
- Compact design
- The EtherCAT network reduces wiring and machine size
| CPU clock frequency | 1.0 GHz |
| Max. number of axes via EtherCAT | 8 |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analog inputs | 0 |
| Max. number of axis interface units | 4 |
| Communication port(s) | EtherCAT Master, Ethernet TCP/IP, USB |
| Supply voltage DC | 20.4-26.4 V |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 63.2 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 230 g |
SKU: CK3MCPU121
Category: Industrial Automation
Brand: OMRON (Delta Tau)
Support
Faraday Motion Controls can assist your team with support and integration of PMAC systems, including bespoke solutions.
