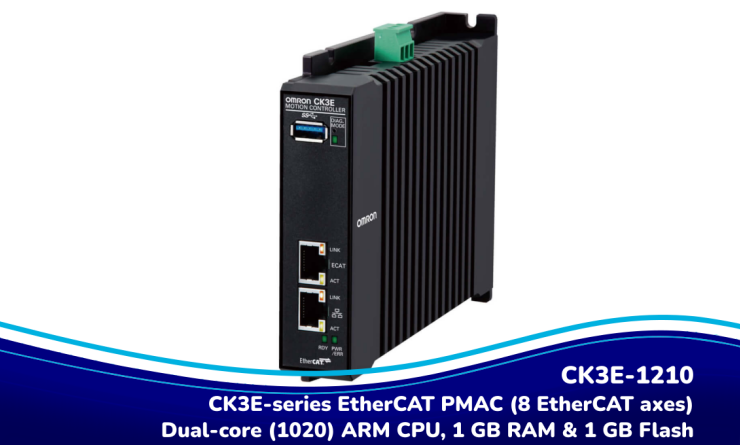

CK3E-1210 | OMRON CK3E-series EtherCAT PMAC
OMRON (CK3E) Programmable Multi-Axis µPower PMAC, 1 GB RAM, 1 GB Flash. (8 EtherCAT servo axes)
GET IN TOUCH ABOUT THIS PRODUCT
Availability
Status: In Stock (Fast UK + World-wide delivery available)
Pricing: Request a quote
Description
The OMRON CK3E-Series packs the full high-speed processing power of the Power PMAC architecture into a sleek, ultra-compact form factor. Built for space-saving machine control, the CK3E handles complex kinematics and up to 32 axes of motion seamlessly over a real-time EtherCAT network.
CK3E-1210 (Programmable Multi-Axis µPower PMAC, 8 EtherCAT axes)
| Item | CK3E-1210 |
| Enclosure | Mounted in a panel |
| Grounding method | Ground to 100 Ω or less |
| Dimensions (height × width × depth) | 130.4(H) × 28.6(D) × 170.9(W) mm |
| Weight | 540 g or less |
| Unit power supply rated voltage | 24 VDC (20.4 to 26.4 VDC) |
| Unit power supply current consumption | 660 mA or less |
| Ambient operating temperature | 0 to 45°C |
| Ambient operating humidity | 10 to 95% RH (without condensation and icing) |
| Atmosphere | Must be free from corrosive gases. |
| Ambient storage temperature | -25 to +70°C (without condensation and icing) |
| Vibration resistance | Conforms to IEC 60068-2-6. |
| 5 to 8.4 Hz with amplitude of 3.5 mm, 8.4 to 150 Hz, acceleration | |
| of 9.8 m/s2 | |
| 100 min each in X, Y, and Z directions (10 sweeps of 10 min each | |
| = 100 min total) | |
| Shock resistance | Conforms to IEC 60068-2-27, 147 m/s2, 3 times each in X, Y, and |
| Z directions | |
| Applicable standards * | EU: EN 61326, RCM, KC Registration, UL |
SKU: CK3E1210
Category: Industrial Automation
Brand: OMRON (Delta Tau)
Support
Faraday Motion Controls can assist your team with support and integration of PMAC systems, including bespoke solutions.
Features
Up to 32
axes motion
control
250 µs
motion control
period
High-precision
curve machining
EtherCAT for
flexible system
configuration
General Specifications
Download the datasheet.
