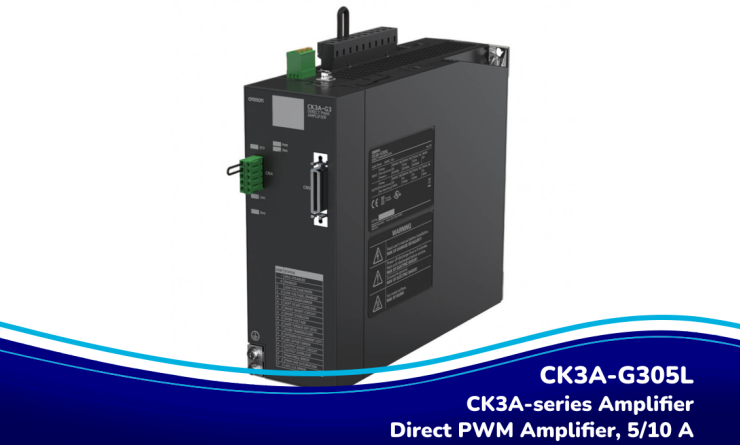

CK3A-G305L | OMRON CK3A-series Amplifier

Availability

Status: In Stock (Fast UK + World-wide delivery available)
Pricing: Request a quote

Description

The OMRON CK3A-Series paired with Power PMAC control delivers high-performance Direct PWM amplification natively inside a single architecture. Built for high-frequency precision control, it provides nano-scale positioning accuracy and seamless multi-motor compatibility to completely eliminate drive-to-controller bottlenecks.

Supported Motors

The CK3A Amplifier, combined with the flexibility of Power PMAC Controller and the ability to interface with various encoder feedback devices, allows the support of the following types of Motors:

• AC/DC synchronous brushless (rotary or linear) - e.g. servo Motor.
• DC Brushed - e.g. voicecoil actuator.
• AC asynchronous - e.g. Induction Motor (contact support for setting up this type of Motor).

Amplifier Features

• Direct PWM Amplifier (5/10 A)
• Nano-scale linear servo positioning accuracy
• High PWM frequency - up to 20 kHz
• High resolution current sensing - 16-bit ADCs
• High speed current ADC sampling - up to 6.125MHz
• Dual STO inputs and status output
• Basic functions - Energy discharge, dynamic braking, fan control
• Basic Data reporting - DC bus voltage, power module temperature, firmware version
• Dual 7-segment LED status display
• Built-in or external shunt resistor
• Support of low voltage main power operation

SKU: CK3AG305L
Category: Industrial Automation
Brand: OMRON (Delta Tau)

Support

Faraday Motion Controls can assist your team with support and integration of PMAC systems, including bespoke solutions.
